Live stream recording tutorial

Last Updated On July 22, 2019
You are here:
< Back

Live stream recording allows you to record your live stream and share it as a video on-demand (VOD). By keeping a record of your live events, you enable your your viewers to re-watch your videos whenever they like.

Record your live stream for up to 8 continuous hours at a time. The feature’s button stays ON up to 7 days. Past 7 days, it can be turned back ON.

Please note that live stream recording will impact your data usage and your transcoding credits usage:

1- Recording your stream will use some of your bandwidth (the amount used is equivalent to a viewer watching the stream)

2- When you create a recorded file, your available storage will lessen according the size of the file (i.e. the length of the video).

3- Recording your stream will use some of your transcoding credits. Your video recorded is automatically encoded. This process requires transcoding credits. read more Please note that if you don’t have enough transcoding credits, you won’t be able to watch the recorded file.

To get access to live stream recording, just give us a call!



How does live stream recording work?

STEP 1: Creation of a live channel

Please follow these requirements to ensure a successful recording.

Requirements for live recording

1- HTML5, Low Latency or M3U8 live channel

2- Video codec: H.264

3- Audio codec: AAC (for the recording to be properly integrated you need audio in your stream)



4- Status of your live channel: ON

5-  An informative popup will display to indicate for how long you can use the feature

live stream recording

7- The Live Stream recording will be automatically turned OFF after 7 days but can be turned back ON.



STEP 2: Activation of the live stream recording feature

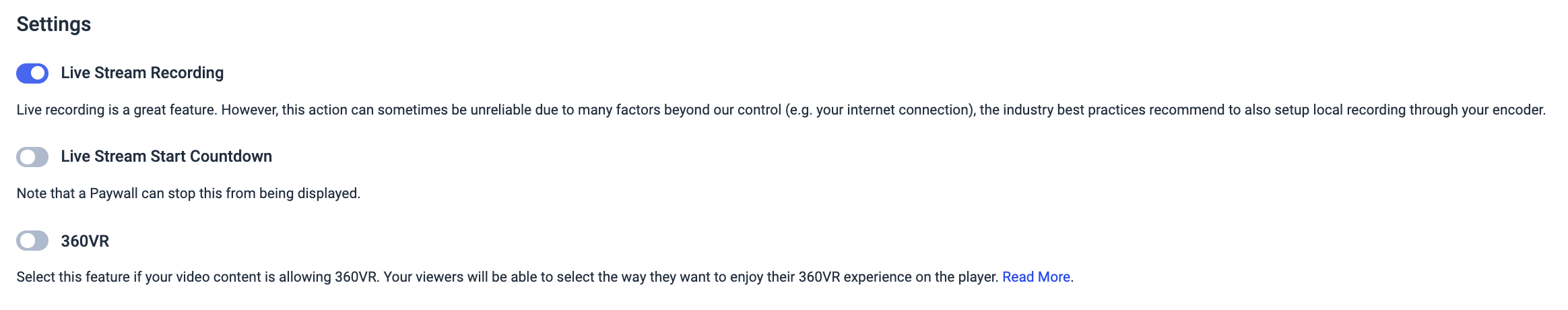

Under the publish settings section of your live channel, turn ON the live stream recording control as shown below:

The Live Stream recording will be automatically turned OFF after 7 days but can be turned back ON.

live stream recording



Please note that live stream recording is an automatic feature: once it is activated for a channel, the stream will record itself automatically each time you put it online, until 7 days after you have turned the feature ON.

We recommend to launch your stream 10min before your event starts to make sure the recording  catches all of it.

STEP 3: Checking the status of the live stream recording feature on your live channel

You can easily verify the live channels for which you have enabled Live stream recording directly on your homepage.

Indeed, if the feature is OFF, it will be displayed under the column “Recording” on your homepage.

live stream recording

After turning ON the live stream recording control for your channel, please go back to the homepage or to your live channels section.

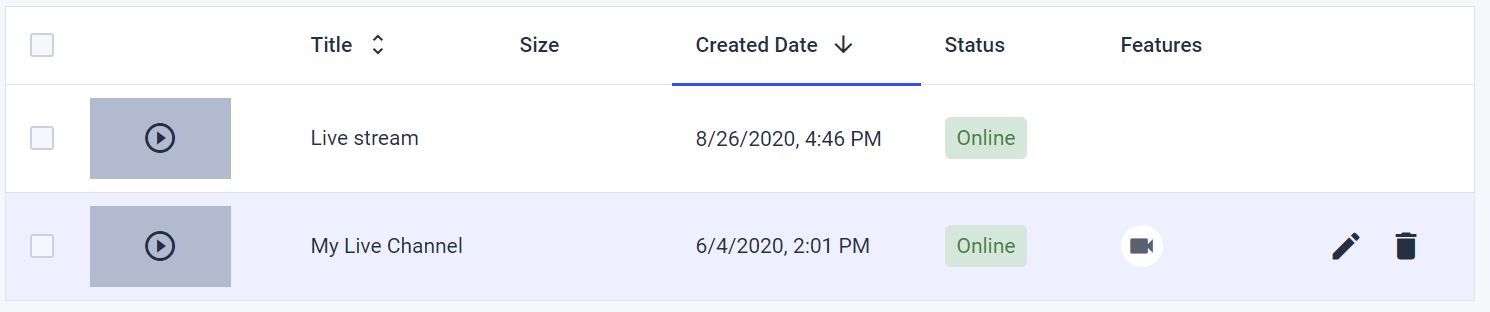

You should be able to see the record live icon (circle icon) next to the status of your channel:

1- The record live icon is grey: this icon indicates that live stream recording is activated for this channel but that there is no on-going recording (because you have not started streaming on this channel yet).

When passing your mouse over the grey record live icon, you will see a comment “waiting for the stream to start”.

live stream recording

2- The record live icon is red: it means that live stream recording is activated for this channel and there is an on-going recording (because you are currently streaming on this channel)

 live stream recording

We recommend to launch your stream 10min before your event starts to make sure the recording  catches all of it.

You will see a banner appear on the top of your live channel section saying ” Recording starting on channel ID: XXXXXX”

The recording will stop after 8 hours, and start over automatically a couple of minutes later as long as your live is still ongoing. Note that you must also still be within the seven days period of time.

3- Record several VODs in the same live event

If you stop recording, enabling the recording again (in the same live stream, after the break) will start recording again, in a new VOD file.

STEP 4: Once your stream is online

Once your stream is online, don’t hesitate to refresh your homepage to verify if the recording has started correctly (i.e. if the record live icon becomes RED).

Maximum length of a continuous recording: 8 hours. After this time, a new file will be automatically created. Therefore, if you are live streaming and recording for 16 hours for example, you will have 2 recorded files lasting 8 hours each.

If you are doing a multi bit-rate stream, please note that the highest bit-rate will be recorded.



STEP 5: To stop your recording

There are two ways to stop your recording.

  1. Disabling the recording will stop the active recording and save it in a VOD file.
  2. Your recording will be automatically stop when you stop streaming.

In your DaCast account, here is what you should see once you have created the recorded file:

SCREEN

– You will receive the following confirmation message: “Recording and integration finished on channel ID: XXXXX”

– You can verify that the recording has stopped by looking at the record live icon, which will have reverted to its initial color: grey.



STEP 6: To access your recorded channel

You can locate your recorded stream under your Video On Demand section in the following file format: Live recording – date time (UTC)

Example: Live recording – Sat Nov 10 2018 01:55:42 GMT 0000

Please note that the longer your recorded file, the longer it takes to display in your VOD section.

You can change the name of your video file by clicking on the title.

live stream recording

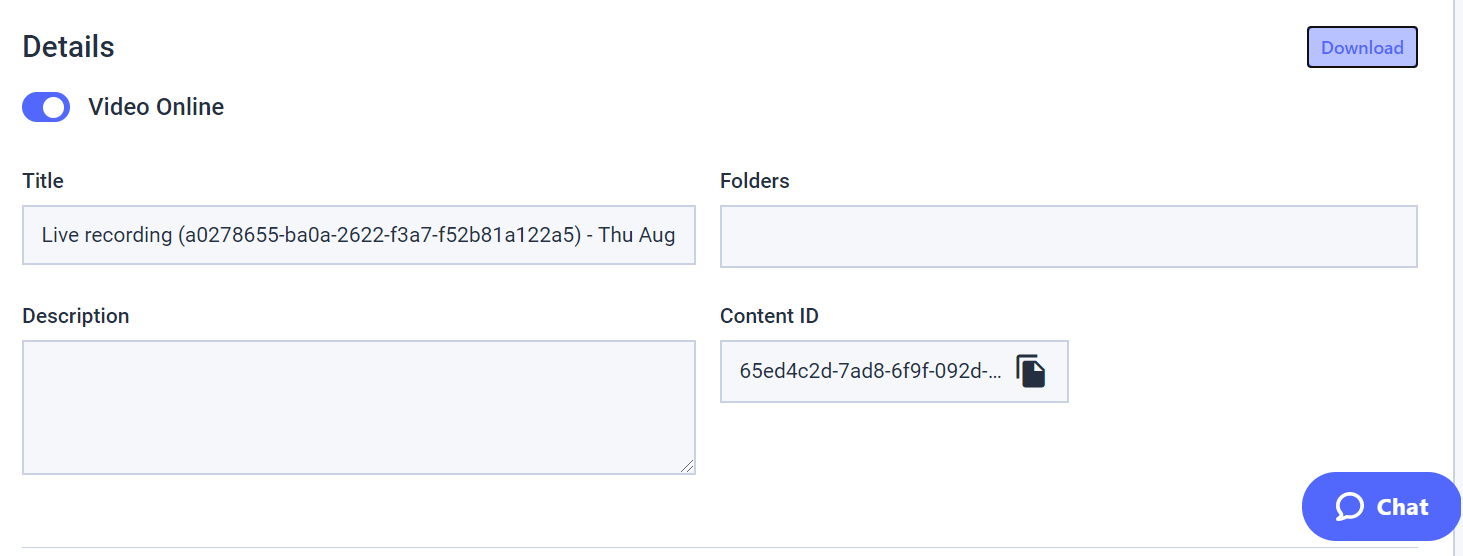

STEP 7: To download your video

The video of your recorded stream saves as an MP4 file, so there is no need to encode it.

To download it, please click on the green icon framed in red in the screenshot above.

The following pop-up will appear asking you to click on the following link.

live stream recording



Please click on “The following link”, your file will open itself in a new window.

You can save the video by doing a right click “Save as” on it as shown below:

live stream recording



Please note that live stream recording allows you to download the same file only 5 times per 24 hours.



STEP 8: To share your video

Please note that a recorded stream has the same exact features as a classic VOD: geo restriction, referrer restriction, free embedding, paywall options, etc.

Make sure you turn your video ON before sharing it.

Any issue with your live recording file?

Please contact us with :

– the time and date of your event, timezone included

– the encoder settings used : encoder used, video bitrates, audio bitrates, video codec, audio codec



6 thoughts on “Live stream recording tutorial

  1. Cornel says:

    Article states that we can manually start a recording if needed, then further states that the method to do so is below. However, I cannot seem to find the instructions for manually starting of a recording. Am I missing something?

    • Etienne Noualhat says:

      Hi Cornel,
      you are actually right, it seems that we are missing one piece of information here. So for your question, I would suggest you enable the auto recording anytime you want to start your live. That would be like a manual recording.
      Did you have any need in particular that would need another recording feature?

  2. Randy Fink Sahae says:

    If I have a long event and I want to have several shorter VOD files – – can I just stop my encoder for a minute, and then re-start it, to create a second file? What other steps do I need to take?

    • Etienne Noualhat says:

      Hey Randy, you could stop your local-record inside your encoder – even for a couple of seconds. With most of the encoders, it will just stop the local recording.

      If you are talking about the live recording, technically, you could do it (stop the stream on your back-office, wait for a couple of minutes, restart the stream) – but that would mean that your viewers would see the “Streaming Offline” for a little while, and you would need to make sure the video is actually well in your back-office before starting the stream again, to avoid any issue.
      Thanks for your input, our engineering team thinks it is a great thing we could implement in the future (a start/stop live recording feature).

  3. Stephen Outram says:

    I will add here that we delay recording, as live events often have various announcement that are not relevant to a VOD audience. Or if an impromptus break is announced where the length of break is not known. Given DaCast’s delay of up to 15 minutes to begin recording, this is very difficult to time so the VOD begins at the actual event beginning. If recording could begin within 1-2 minutes of streaming. then this would be very useful; is that possible and why does it take up to 15 minutes now? Thank you.

    • Etienne Noualhat says:

      So, right now you should not have the 15 minutes recording anymore. It should take you 1 minute to start the recording, 2m maximum if you are very unlucky. If this is not the case, please do contact our support!
